Glycans - complexo de açúcares

Three major repeating biomacromolecules,

  • polynucleotides
  • polypeptides and
  • carbohydrates
are responsible for much of the information transfer in biological systems.

Encoding and transmission of information relies on the construction of diverse macromolecules that contain the message.

Polynucleotides serve as the blueprint of life in form of DNA;
polypeptides carry out most of reactions in living cells.

Both polymers are strictly linear and derived biosynthetically via reliable templated syntheses.

DNA is composed of 4 nucleotides and mammalian proteins have 20 proteinogenic amino acids that determine polymer diversity: 4096 (46) hexanucleotides and 64 million (206) hexapeptides are possible.

Posttranslational modifications such as
  • phosphorylation,
  • glycosylation, and
  • lipidation
further increase protein complexity.




O ser humano possui aprox. 25.000 genes enquanto uma bactéria unicelular possui aprox. 6.000 genes. Apensar da aparente pequena quantidade de genes humanos comparados a uma bactéria, a diferença está na "pós-translacional modificação" das proteínas no ser humano. Uma das mais comuns modificações está na glicolização de proteínas

O estudo dos açúcares que influenciam as funções das proteínas e lipídios é chamado de glicoma. Em uma célula sadia o glicoma tem certas características diferentes de uma célula cancerígena.

Os glicans são formados no Retículo endoplamático (ER) e/ou(?) complexo de Golgi e assim os glicans se ligam as proteínas.

Diferente do DNA que tem uma sequência única de formação 3'-5' e as proteínas que tem o N-terminal e o XX-inicial, os sacarídeos podem se formar de maneiras diversas dependendo de suas conecções.

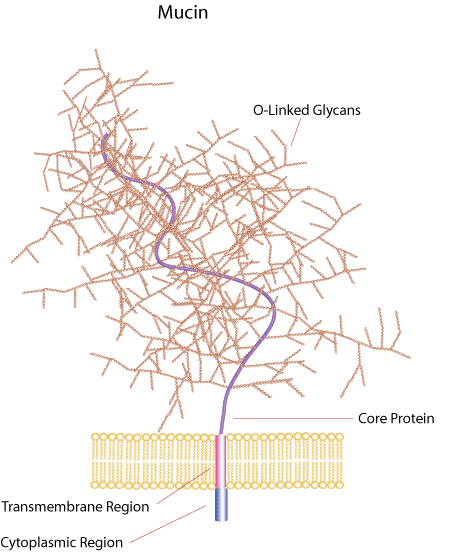

Mucin

Mucins are a diverse family of densely glycosylated proteins. Mucin domains within the protein core are rich in threonine, serine and hydroxyproline enabling post-translational O-glycosylation. The highly glycosylated properties of mucins make them resistant to proteolysis and able to hold water, giving them the gel-like properties found in mucosal barriers. Mucins also contain cysteine-rich regions that participate in intermolecular cross-linking and are typically secreted as large aggregates. Mucins may also be associated with membranes and may serve as receptor-like ligands for carbohydrate-binding molecules.
http://www.sigmaaldrich.com/life-science/metabolomics/enzyme-explorer/learning-center/structural-proteins/mucin.html

Imagens do vídeo:

Carolyn Bertozzi (UC Berkeley) Part 1: Chemical Glycobiology

ibiology

http://www.youtube.com/watch?v=WCbg-kOY_8E
http://ibioseminars.hhmi.org/lectures/chemicalbiologybiophysics/carolyn-bertozzi.html
Glico proteínas e glico lipídios


9 monossacarídios encontrado nos vertebrados
Sacarídeos nas células sanguíneas que diferenciam os tipos O, A, B e AB. Assim como as enzimas que as formam são diferentes.
N-glycan core




N-Acetylgalactosamine (GalNAc), is an amino sugar derivative of galactose. (componente do O-glycan)
GalNAc

N-Acetylglucosamine (N-acetyl-D-glucosamine, or GlcNAc, or NAG) is a monosaccharide derivative of glucose. (Componente do N-glycan)


GlcNAc

Os carboidratos das proteínas da superfície celular tem duas funções dependendo de sua estrutura:

  • Promover a metástase
  • Inibir a metástase
Estes são classificados por sua ligação com a proteína:

N-glycans - ligados a asparagina (ASN) N



O-glycans - ligados a serina (SER) S ou a Threonine (THR) T


Os O-glycans em mamíferos são classificados em 4 grupos (core1 - core4)





Papers DNA+Cu-complexes

1)
Metal complex–DNA binding: Insights from molecular dynamics and DFT/MM calculations
http://www.sciencedirect.com/science/article/pii/S0162013413000688

2)
Molecular recognition between DNA and a copper-based anticancer complex
http://pubs.rsc.org/en/Content/ArticleLanding/2012/CP/c2cp42185b#!divAbstract

3)
Synthesis and crystal structure of a ternary copper(II) complex of 2,2’-bipyridine and picrate: Molecular docking, reactivity towards DNA and in vitro anticancer activity
http://www.sciencedirect.com/science/article/pii/S0022286013009289

Syntheses and crystal structures of tetracopper(II) complexes bridged by asymmetric N,N′-bis(substituted)oxamides: Molecular docking, DNA-binding and in vitro anticancer activity
http://www.sciencedirect.com/science/article/pii/S0162013413001918

Intercalative interaction of asymmetric copper(II) complex with DNA: Experimental, molecular docking, molecular dynamics and TDDFT studies
http://www.sciencedirect.com/science/article/pii/S0162013413001980

Theoretical Simulations on Interactions of Mono- and Dinuclear Metallonucleases with DNA
http://pubs.acs.org/doi/abs/10.1021/jp306998f?journalCode=jpcbfk

4)
Evaluation of Amber force field parameters for copper(II) with pyridylmethyl-amine and benzimidazolylmethyl-amine ligands: A quantum chemical study
http://www.sciencedirect.com/science/article/pii/S0009261408003382


5)
Copper−1,10-Phenanthroline Complexes Binding to DNA: Structural Predictions from Molecular Simulations
http://pubs.acs.org/doi/abs/10.1021/jp901210g




ver
http://pubs.rsc.org/en/content/articlelanding/2010/ic/b918406f#!divAbstract
http://pubs.acs.org/doi/abs/10.1021/cr400135x




Ligantes orgânicos de DNA

Quais são as perguntas e dúvidas sobre a interação de drogas (intercalantes ou não em DNA?)

Resistance to chemotherapy and molecularly targeted therapies is a major problem facing current cancer research

In recent years, the general consensus on the crucial role of the interactions of metallo drugs with proteins indetermining the compounds’ pharmacological action, uptake and biodistribution, as well
as their overall toxicity profile, resulted in an exponential increase in the number of studies
Quais são os principais grupos que procuram responder a estas perguntas?
Quais são as técnicas experimentais e computacionais pra auxiliar neste problema?

Incluir uma tabela com o deltaG dos compostos

Porque os intergalantes tem preferência por sequências CG?
__________________________________________________________

Ethidium-bromide
Ethidium-bromide
hoechst_33258


hoechst_33258
1DNH
1QSX
8BNA





















1DNH (5'-D(*CP*GP*CP*GP*AP*AP*TP*TP*CP*GP*CP*G)-3')
1QSX   5'-D(CP*TP*TP*TP*TP*GP*CP*AP*AP*AP*AP*G)-3'
8BNA (5'-D(*CP*GP*CP*GP*AP*AP*TP*TP*CP*GP*CP*G)-3')

Em laranja estão as regiões onde o hoechst interage com o DNA



Teste com dinâmica molecular: Tomaremos primeiramente a estrutura de NMR 1QSX que possui informação dos hidrogênios. A sequência que estudarei será AAAA.

Qual a carga do ligante? Considerei a carga +1 segundo o paper "Protonation Equilibria of Hoechst 33258 in aqueous solution (Helvetica Chimica Acta vol 88 (2005) pp53

Hoechst da estrutura 1QSX


O Hoechst interage com o oxigênio da timina e o N da adenina através do grupo amina secundária (estrutura 1QSX)
_________________________________________________________________________

Daunomicyn - intercalador - intercala pelo minor groove

1AL9
1D11
308D
482D





________________________________________________________

Preparação do sistema:

antechamber -i hoechst.pdb -fi pdb -o hoechst.mol2 -fo mol2 -c bcc -s 2 -nc 1
parmchk -i hoechst.mol2 -f mol2 -o hoechst.frcmod


# Copiar modelo que será utilizado no docking

#tleap -f leaprc.gaff
source leaprc.ff99SB


# CARREGAR O COMPLEXO DE COBRE (o loadoff deve vir antes do loadpdb !!!!!!)
#loadoff cie.lib
HT = loadmol2 hoechst.mol2
loadamberparams hoechst.frcmod
check HT


# CARREGAR O DNA
DNA = loadpdb DNA.pdb
savepdb DNA DNA.pdb
check DNA

# COMBINAR OS DOIS RESIDUOS
CIED = combine { HT DNA }

# COLOCAR ci, SOLVATACAO E SALVAR
saveamberparm CIED cie.top cie.crd
savepdb CIED cied.pdb
addions CIED Na+ 0
saveamberparm CIED cie_ci.top cie_ci.crd
solvatebox CIED TIP3PBOX 24
saveamberparm CIED cie_solv.top cie_solv.crd
savepdb CIED cie_solv.pdb


Papers


Designer DNA-binding drugs: the crystal structure of a meta-hydroxy analogue of Hoechst 33258 bound to d(CGCGAATTCGCG)2
George R. Clark1,2, Christopher J. Squire2, Emily J. Gray1, Werner Leupin3,+ and
Stephen Neidle
http://nar.oxfordjournals.org/content/24/24/4882.full.pdf+html
Nucleic Acids Research, 1996, Vol. 24, No. 24

Texto que cita a maior importância das interações de van der Waals e contatos hidrofóbicos do que ligações de hidrogênio nos minor groove binders.



Sequence-dependent variation in DNA minor groove width dictates orientational preference of Hoechst 33258 in A-tract recognition: solution NMR structure of the 2:1 complex with d(CTTTTGCAAAAG)
Nucleic Acids Res. 2000 Feb 1;28(3):728-35.
Gavathiotis E, Sharman GJ, Searle MS.

The majority of small molecules that bind in the minor groove of duplex DNA, including distamycin and Hoechst 33258, have a marked preference for AT rich sequences

Recently it has been suggested that sequence specificity may be dominated by ability to select binding sites on the basis of groove width, allowing optimum van der Waal’s complementarity and hydrophobic surface burial, rather than specific hydrogen bonding interactions with the groove floor



Título: Theoretical study of molecular recognition by Hoechst 33258 derivatives
Autor(es): Kakkar, R; Suruchi; Grover, R
Fonte: JOURNAL OF BIOMOLECULAR STRUCTURE & DYNAMICS  Volume: 23   Edição: 1   Páginas: 37-47   Publicado: AUG 2005
Número de citações: 6 (de todas as bases de dados)

The factors responsible for the binding of Hoechst 33258 with DNA residues have been investigated in this work using the AMI method. First and foremost, it is found that, although all crystal structure determinations indicate a preference for binding at AT rich sites, the hydrogen bond strength is actually greater for complexes with cytosine and guanine. From this, it has been inferred that other factors such as electrostatic, van der Waals interactions and nonbonded contacts with the walls of the minor groove have a strong role to play in the binding process. The hydrogen bond is found to be stronger for complexation with the thymine O-2 than with the adenine N-3, in line with experimental observations. Combined QM/MM studies on the drug complexed with the Dickerson-Drew dodecamer reveal that binding induces structural changes in both the ligand as well as DNA. Electron donating substituents at the para position in the phenyl ring of Hoechst 3:3258 lead to stronger binding with DNA. A correlation with the octanol/water partition coefficients points to the importance of hydrophobic and electrostatic interactions.



Título: A molecular thermodynamic view of DNA-drug interactions: a case study of 25 minor-groove binders
Autor(es): Shaikh, SA; Ahmed, SR; Jayaram, B
Fonte: ARCHIVES OF BIOCHEMISTRY AND BIOPHYSICS  Volume: 429   Edição: 1   Páginas: 81-99   DOI: 10.1016/j.abb.2004.05.019   Publicado: SEP 1 2004
Número de citações: 52 (de todas as bases de dados)

Developing a molecular view of the thermodynamics of DNA recognition is essential to the design of ligands for regulating gene expression. In a first comprehensive attempt at sketching an atlas of DNA–drug energetics, we present here a detailed thermodynamic view of minor-groove recognition by small molecules via a computational study on 25 DNA–drug complexes. The studies are configured in the MMGBSA (Molecular Mechanics-Generalized Born-Solvent Accessibility) framework at the current state of the art and facilitate a structure–energy component correlation. Analyses were conducted on both energy minimized structures of DNA–drug complexes and molecular dynamics trajectories developed for the purpose of this study. While highlighting the favorable role of packing, shape complementarity, and van der Waals and hydrophobic interactions of the drugs in the minor groove in conformity with experiment, the studies reveal an interesting annihilation of favorable electrostatics by desolvation. Structural modifications attempted on the ligands point to the requisite physico-chemical factors for obtaining improved binding energies. Hydrogen bonds predicted to be important for specificity based on structural considerations do not always turn out to be significant to binding in post facto analyses of molecular dynamics trajectories, which treat thermal averaging, solvent, and counterion effects rigorously. The strength of the hydrogen bonds retained between the DNA and drug during the molecular dynamics simulations is ∼1 kcal/mol. Overall, the study reveals the compensatory nature of the diverse binding free energy components, possible threshold limits for some of these properties, and the availability of a computationally viable free energy methodology which could be of value in drug-design endeavors.



Título: DNA-binding of drugs used in medicinal therapies
Autor(es): Bischoff, G; Hoffmann, S
Fonte: CURRENT MEDICINAL CHEMISTRY  Volume: 9   Edição: 3   Páginas: 321-348   Publicado: FEB 2002
Número de citações: 42 (de todas as bases de dados)

The interactions of various low-molecular weight substances with DNA are naturally relevant mechanisms in the cellular cycle and so also used in medicinal treatment. Depending on the particular drug structure, DNA-binding modes like groove-binding, intercalating and/or stacking, give rise to supramolecular assemblies of the polynucleotides, as well as influence the DNA-protein binding.
In this review, we compare the underlying molecular structures, including general aspects of DNA sequences, with the benefit in medicinal treatment. While so far interest in this field had mainly been devoted to isolated nucleic acid/drug interactions, the present paper will focus on drug efficiencies generating and influencing supramolecular organizations and their complex sequence-dependent structure-activity codes. In particular, the attention will be directed to stereoelectronic relationships. Spatial enantioselective properties are discussed in details. As examples, the drug self-assemblies, as well as the influence of drugs on supramolecular DNA formations are described. A hypothetical connection between drug-influenced DNA-toroids and the formation of micronuclei in tissues will be interpreted.


Título: Recent developments in sequence selective minor groove DNA effectors
Autor(es): Reddy, BSP; Sharma, SK; Lown, JW
Fonte: CURRENT MEDICINAL CHEMISTRY  Volume: 8   Edição: 5   Páginas: 475-508   Publicado: APR 2001
Número de citações: 86 (de todas as bases de dados)


Título: A new class of symmetric bisbenzimidazole-based DNA minor groove-binding agents showing antitumor activity
Autor(es): Mann, J; Baron, A; Opoku-Boahen, Y; et al.
Fonte: JOURNAL OF MEDICINAL CHEMISTRY  Volume: 44   Edição: 2   Páginas: 138-144   DOI: 10.1021/jm000297b   Publicado: JAN 18 2001
Número de citações: 130 (de todas as bases de dados)


Título: DNA minor-groove recognition by small molecules
Autor(es): Neidle, S
Fonte: NATURAL PRODUCT REPORTS  Volume: 18   Edição: 3   Páginas: 291-309   DOI: 10.1039/a705982e   Publicado: 2001
Número de citações: 224 (de todas as bases de dados)



Título: Structural studies of atom-specific anticancer drugs acting on DNA
Autor(es): Yang, XL; Wang, AHJ
Fonte: PHARMACOLOGY & THERAPEUTICS  Volume: 83   Edição: 3   Páginas: 181-215   DOI: 10.1016/S0163-7258(99)00020-0   Publicado: SEP 1999
Número de citações: 149 (de todas as bases de dados)



Rational recognition of nucleic acid sequences
Hirokazu Iida, Guofeng Jia, J William Lown E-mail the corresponding author
Current Opinion in Biotechnology
Volume 10, Issue 1, 1 February 1999, Pages 29–33

Factors contributing to the molecular recognition of DNA binders
Although the structures of Hoechst 33258 and netropsin are ostensibly quite dissimilar, examination of the molecular recognition surface components of the two ligands directed towards the DNA minor-groove receptor reveals significant similarities.

Based on not only X-ray analysis but also NMR and biological techniques of assessing DNA–minor-groove-binder interactions, progress has been made in understanding some of the factors contributing to the molecular recognition processes:


  • firstly, the ability of certain hydrogen bond accepting heterocylic moieties towards specific basepair recognition;
  • secondly, the influence of ligand cationic charge in sequence-selective binding;
  • thirdly, certain van der Waals, contacts in 3′-terminal basepair recognition;
  • and finally, electrostatic interactions between the polyanionic DNA and the cationic compounds, which are sequence dependent
Titulo:
Antihelicase Action of DNA-Binding Anticancer Agents: Relationship to Guanosine-Cytidine Intercalator Binding


An additional interesting correlation is the antihelicase action of DNA-intercalating antibiotics and their DNA-binding preference for G-C base pair sites.

The G-C base pair binding preference of the intercalating antibiotics may result from evolutionary selection because of the higher G-C binding stability, compared with A-T
binding stability. The combination of the higher base pair stability at G-C regions and increased duplex DNA stability induced by intercalating antibiotic yields a total additive stability of the intercalator-G-C base pair complex that resists helicase action.


DNA-intercalating antibiotics stabilize duplex DNA and increase
the energy required to separate paired DNA strands (i.e.,
DNA melting) (17). The DNA-intercalating antibiotics daunorubicin
(10), actinomycin D (11), elsamicin (12), and echinomycin
(13) bind preferentially at G-C base pairs of duplex
DNA, as do most natural intercalating antibiotics. G-C base
pairs in duplex DNA have much greater electronic complementarity
than do the A-T base pairs and are the most stable of
the hydrogen-bonded base pairs, as seen in DNA melting. A
reasonable assumption is that the maximal DNA helicase catalytic
power is used to separate G-C base pairs. The combination
ofthe high G-C base pair stability and the increased duplex
DNA stability produced by an intercalated antibiotic at a G-C
site increases the overall duplex DNA stability at the intercalator-
G-C locus. This supernormal duplex DNA stability at the
intercalator-G-C locus may exceed the catalytic power exerted
by helicases to affect duplex DNA strand separation and may
thus slow or stop helicase action. The factor of G-C base pair
stability may have helped to determine the evolutionary selection
of intercalating antibiotics for G-C-binding specificity.


Título:CORRELATION OF THE BASE SPECIFICITY OF DNA - INTERCALATING
LIGANDS WITH THEIR PHYSICO-CHEMICAL PROPERTIES

From analysis of eqs. l-6 a number of conclusions
may be drawn concerning the affinity and specificity
of heterocyclic ligands for DNA. The relative hydro-
phobicities of the ligands correlate neither with the
affinity for DNA nor with the base specificity (eqs. 2
and 5). At physiological pH the ligands are present
almost exclusively in the ionised form in which form
they interact with DNA. One would therefore expect
that electronic parameters would be more important
in determining binding. Eq. 1 shows some correlation
between affinity for DNA and charge transfer inter-
action. This correlation is improved slightly by adding
the hydrophobicity parameter (eq. 3). This suggests
that binding affinity for DNA depends on-a number
of different parameters, electronic, hydrophobic and
also possibly steric. Base specificity on the other hand
appears to depend almost exclusively on electronic factors. This is shown by the very good linear correla-
tion between Miiller’s (Y value and the relative charge
transfer affinity constant KGMP (eq. 4) which is not
significantly altered by the addition of the hydro-
phobicity parameter (eq. 6).
Thus we have shown that base specificity in these
ligands is related to their electronic characteristics.
These are in turn related to chemical structure and
IV-methylation increases both base specificity and
relative charge transfer affinity. The precise effect of
slight variations of chemical structure on the electronic 1
characteristics of the molecule and also the importance
of steric parameters in binding affinity and base
specificity needs to be further investigated.


Título:
Cancer drug resistance: an evolving paradigm Resistance to chemotherapy and molecularly targeted therapies is a major problem facing current cancer research

DOI: 10.1093/NAR/28.3.728 - 1QSX
